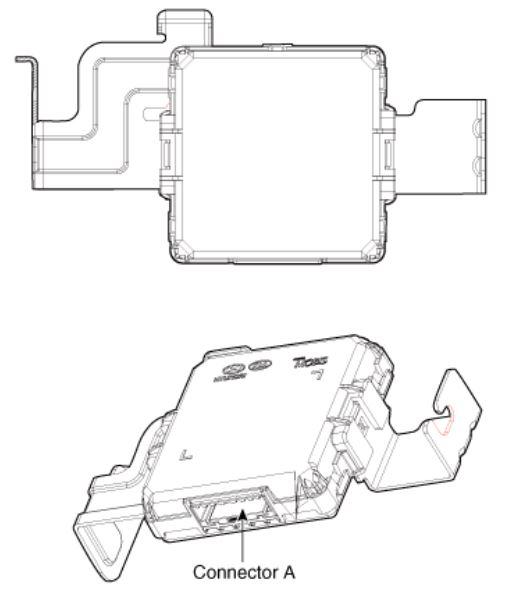

Components And Components Locations: Component

Courtesy of HYUNDAI MOTOR AMERICA

Connector A	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	IGN 1
	2	IGN2
	3	-
	4	Power ground
	5	Battery l+)
	7	ACC
	7	Local CAN High
	8	Local CAN Low
	9	B- CAN High
	10	B- CAN Low
	11	BLE
	12	ECU ground
