Components And Components Location: Components

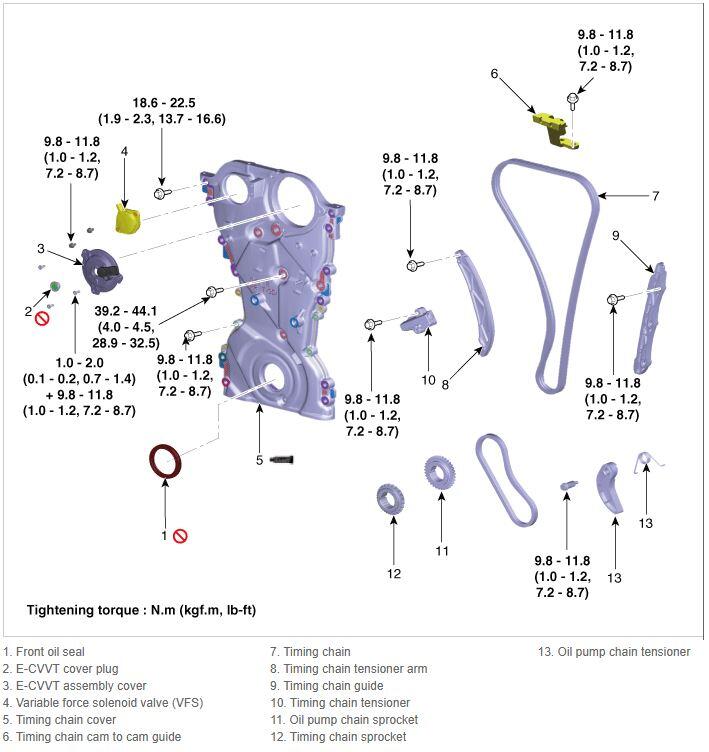

Fig 1: Timing Chain Components Location With Torque Specifications
G15546748Courtesy of HYUNDAI MOTOR AMERICA
