Repair Procedures: Installation

1. Install in the reverse order of removal.

[Diagnosis With GDS]

1. In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (Diagnostic tool).

   The diagnostic system (Diagnostic tool) provides the following information.

   1. Fault Code Searching: Checking failure and code number (DTC)
   2. Data Analysis: Checking the system input/output data state
   3. Actuation test: Checking the system operation condition
   4. S/W Management: Controlling other features including system option setting and zero point adjustment

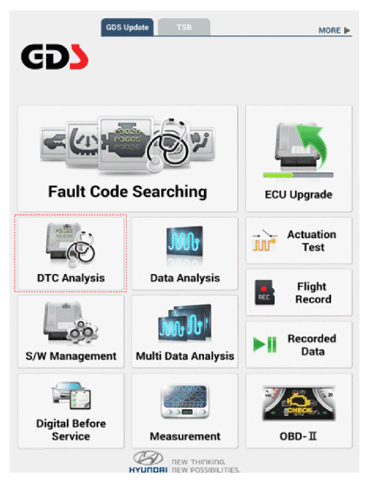

2. If diagnose the vehicle by Diagnostic tool, select "DTC Analysis" and "Vehicle".

   Courtesy of HYUNDAI MOTOR AMERICA

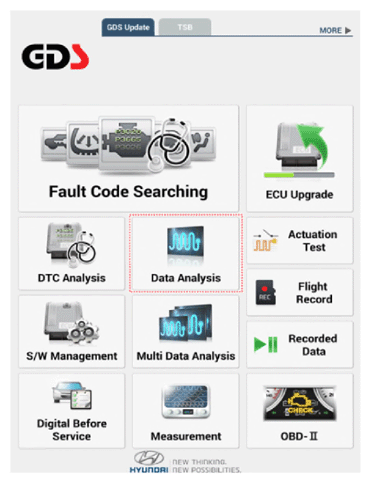

3. If check current status, select the "Data Analysis".

   Courtesy of HYUNDAI MOTOR AMERICA

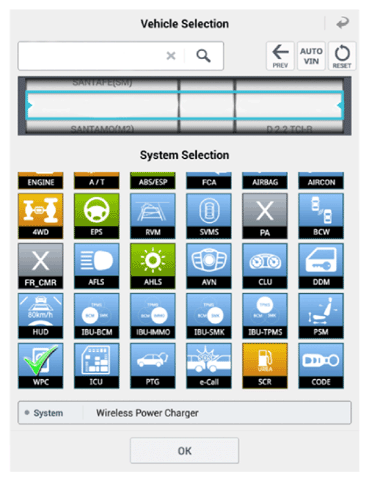

4. Select the 'WPC' to search the current state of the input/output data.

   Courtesy of HYUNDAI MOTOR AMERICA
