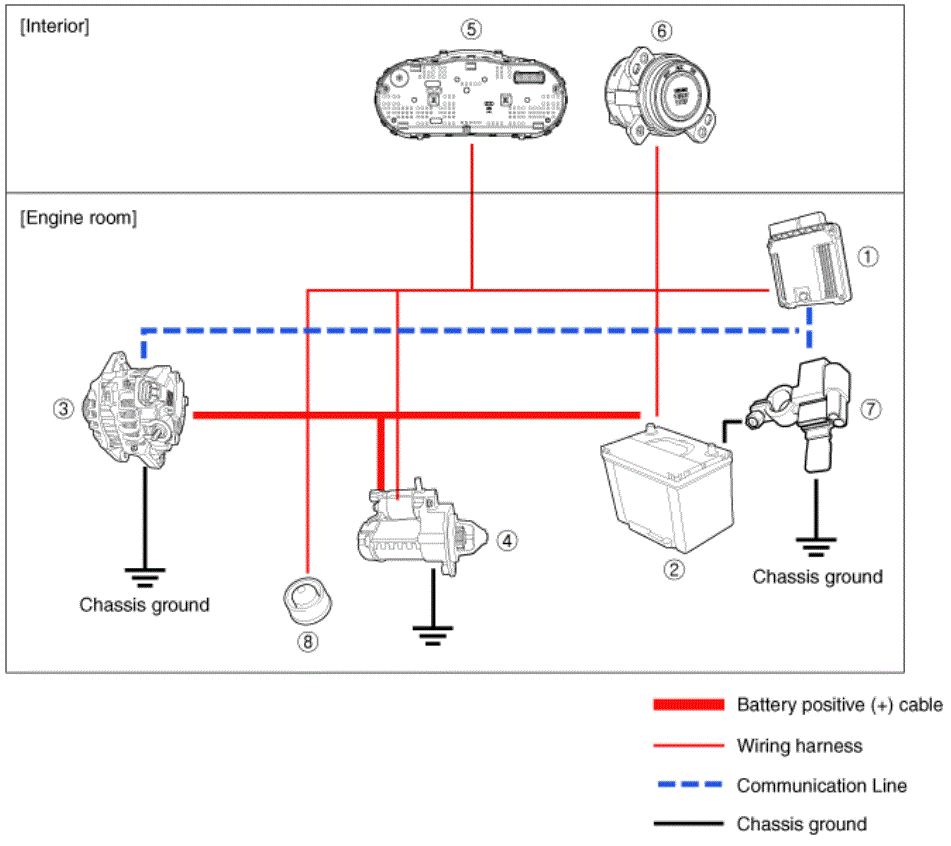

Components And Components Location: Components

Courtesy of HYUNDAI MOTOR AMERICA

1. ECM
2. Battery
3. Alternator
4. Starter
5. Instrument Cluster
6. Ignition switch or start/stop button
7. Battery sensor
8. Hood switch
