Repair Procedures: Removal
CAUTION:
- Handling wireless charging system parts by wet hands may cause electric shock.
- Disconnect the negative (-) battery terminal.

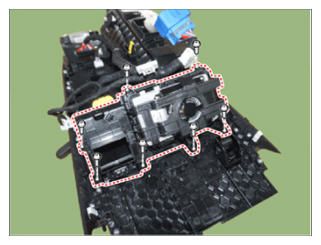

- Remove the floor console assembly. (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

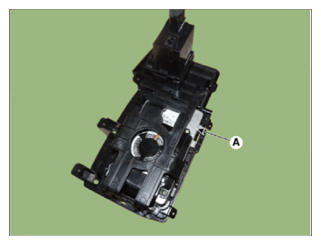

- Disconnect the wireless power charging unit connector and remove the wireless power charging unit (A).
