Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the front driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
- Remove the transaxle side joint.
(Refer to Driveshaft Assembly - "JOINT ASSEMBLY (TRANSAXLE SIDE) ")

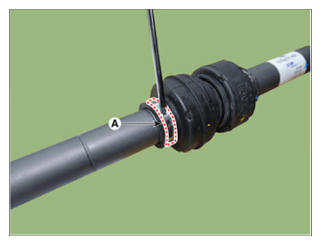

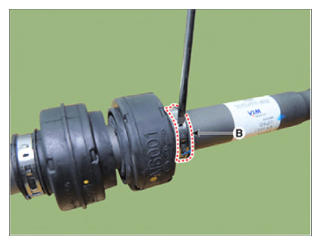

- Remove the dynamic damper band (A, B) using driver (-).NOTE:
- When removing the dynamic damper, lubricate the shaft with soapy water to prevent shaft damage.

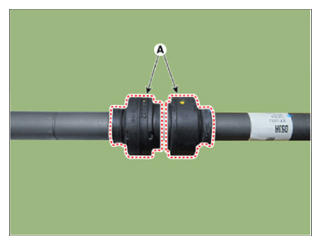

- Remove the dynamic damper (A).
