Components And Components Location: Component

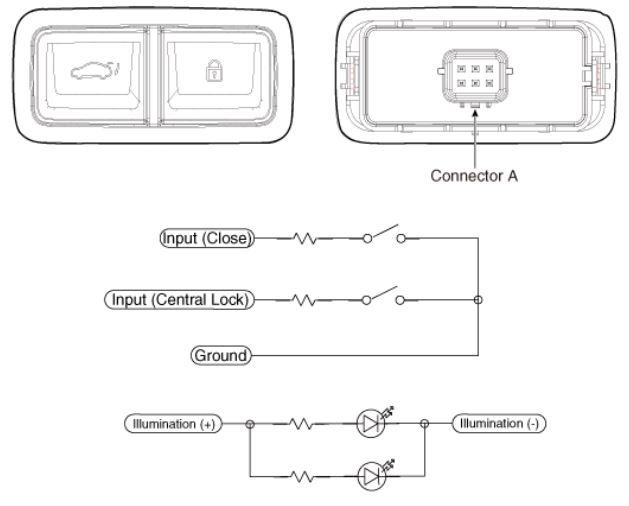

G15554768Courtesy of HYUNDAI MOTOR AMERICA
Connector A Tin Description
G14932224Courtesy of HYUNDAI MOTOR AMERICA
 1 Central Lock
2 -
3 Trunk close
4 Illumination (+)
5 Ground
6 Illumination (-)
