[TPS 2]

Item Duty (%) Output Voltage (V) [Supply Voltage = 5V]
C.T 88.5 ~ 91.5% 4.43 ~ 4.58
W.O.T 2 ~ 10% 0.1 ~ 0.5

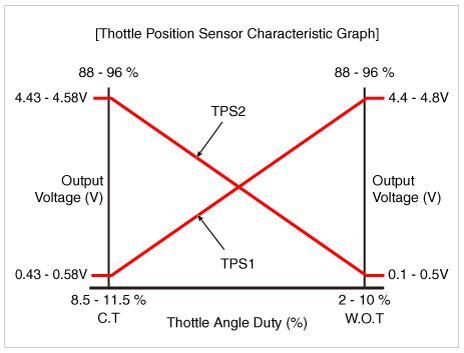

G15556955Courtesy of HYUNDAI MOTOR AMERICA
