Connector assembly status test

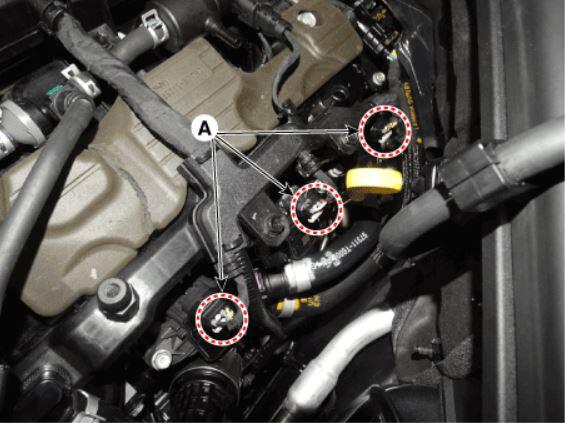

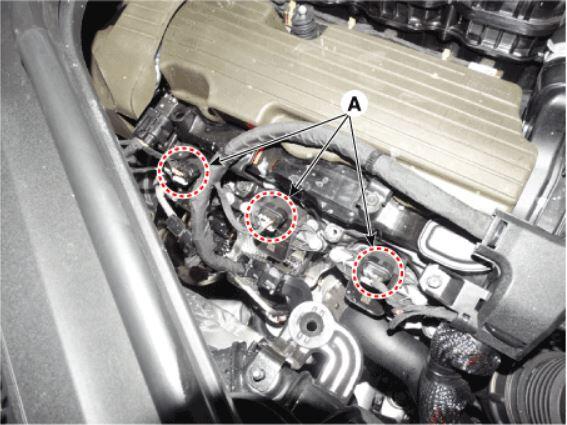

  1. Remove the connector (A) and reinstall it.
G15556855Courtesy of HYUNDAI MOTOR AMERICA
G15556856Courtesy of HYUNDAI MOTOR AMERICA

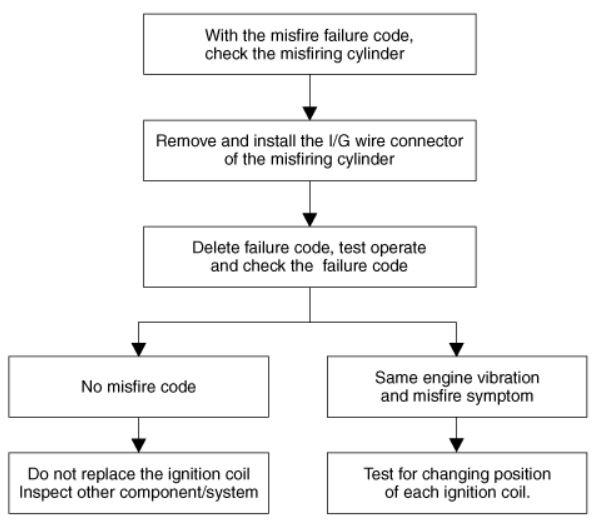

G15556857Courtesy of HYUNDAI MOTOR AMERICA
