Home › Genesis › 2021 › G80 3.5T, AWD › Repair and Diagnosis › Transmission › Automatic Trans › Engine And Transmission Assembly - 3.5L › Engine Mounting › Components and Components Location › Components › 2WD

Components and Components Location: Components: 2WD

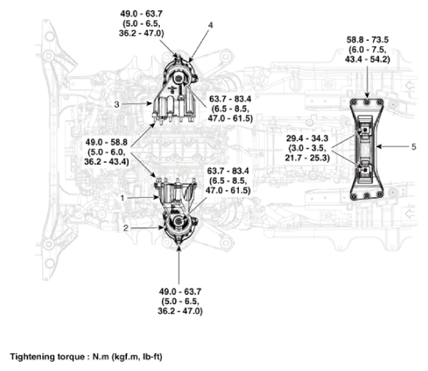

Fig 1: Engine Mounting Components Location With Torque Specification (2WD)
G15555484Courtesy of HYUNDAI MOTOR AMERICA
