Components and Components Location: Components: AWD

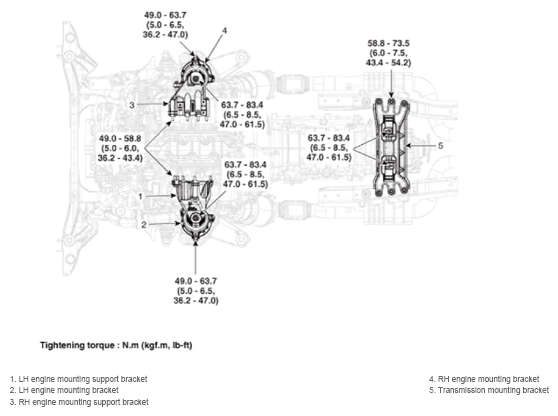

Fig 1: Engine Mounting Components Location With Torque Specification (AWD)
G15555485Courtesy of HYUNDAI MOTOR AMERICA
