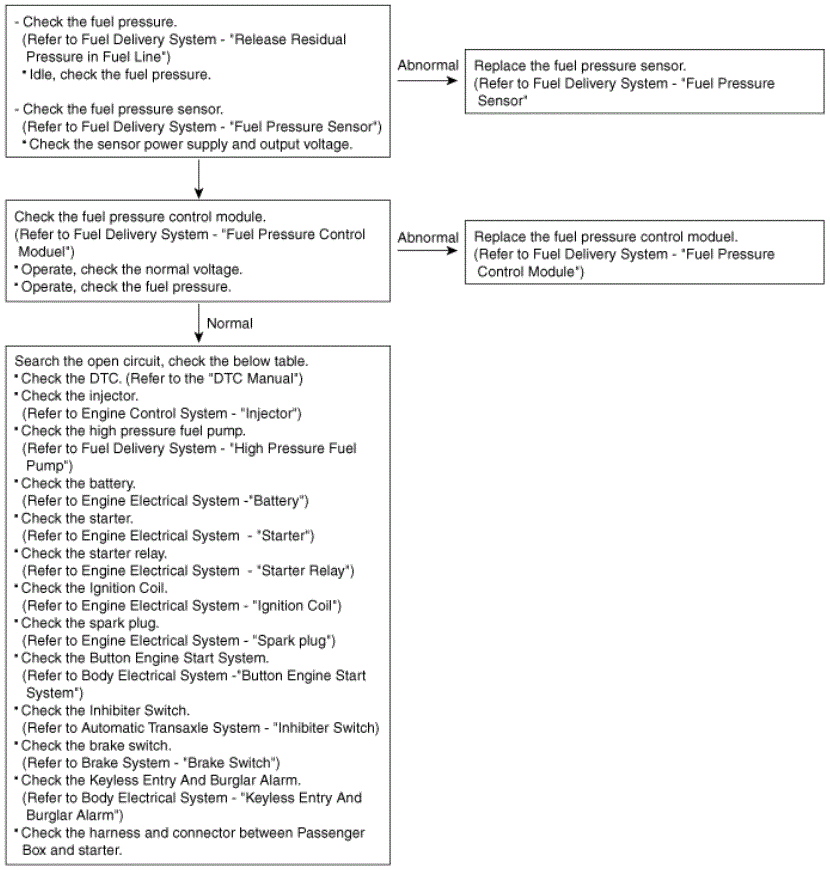

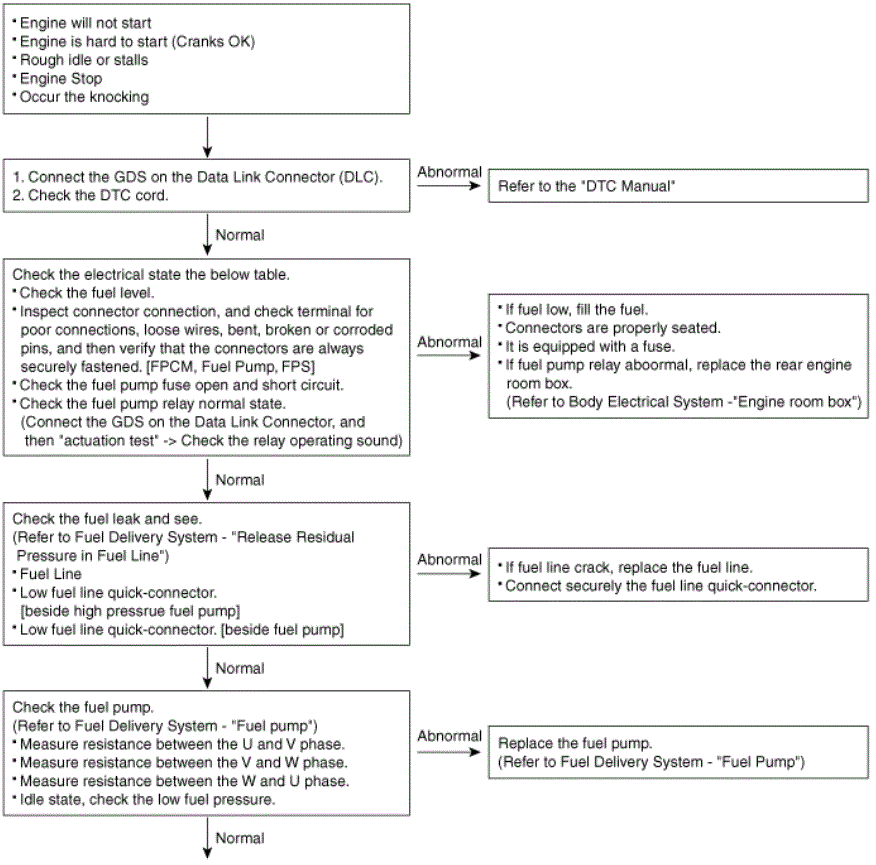

Fuel Delivery System - 3.5L: Troubleshooting

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

• Check the fuel pressure after replacing parts.

  (Refer to Fuel Delivery System - "Fuel Pressure Test  ")
