Repair Procedures: Removal

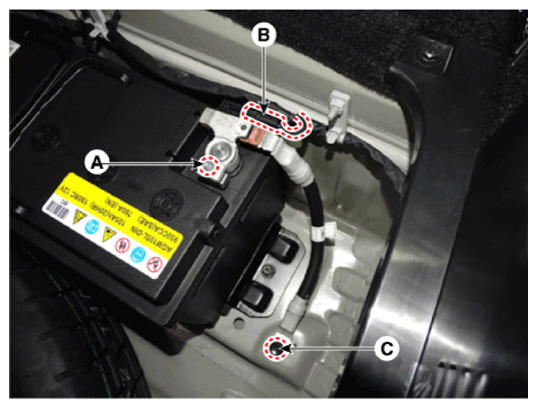

Turn ignition switch OFF and remove the negative (-) battery cable mounting nut (A).
Disconnect the battery sensor connector (B).
Remove the battery sensor cable after removing the bolts (C).

Courtesy of HYUNDAI MOTOR AMERICA
