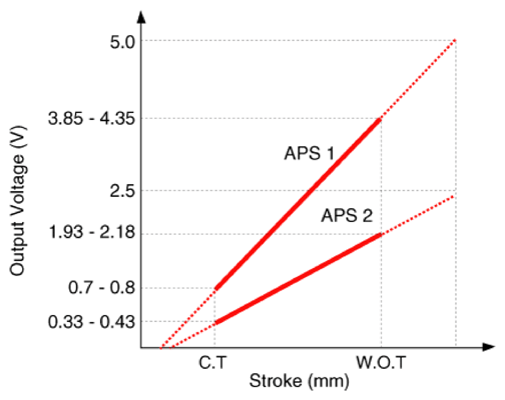

Accelerator Position Sensor (APS): Specifications: Specification

Accelerator Position	Output Voltage (V)
	APS1	APS2
C.T	0.7 - 0.8	0.33 - 0.43
W.O.T	3.85 - 4.35	1.93 - 2.18

Courtesy of HYUNDAI MOTOR AMERICA
