Description And Operation: Description

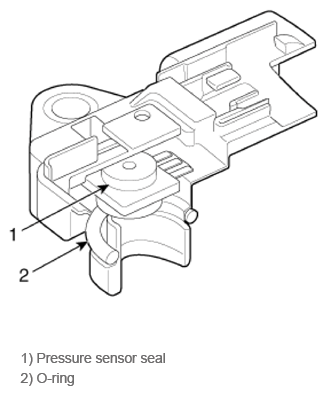

Boost pressure sensor (BPS) is installed on surge tank to measure the absolute intake manifold pressure. BPS input voltage is changed in proportion with absolute pressure in manifold. This information is used to control Electric VGT Control Actuator (EWGA) by ECM.

Courtesy of HYUNDAI MOTOR AMERICA
