Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
(Refer to Engine Mechanical System - "REPAIR PROCEDURES ")

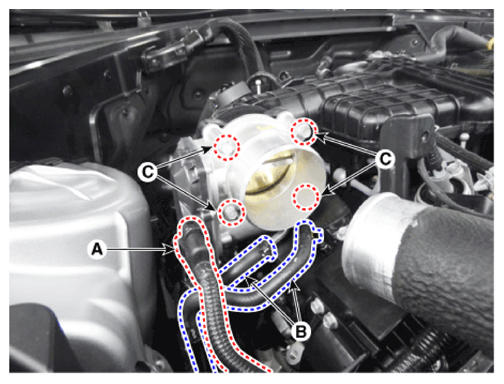

- Disconnect the ETC module connector (A).
- Disconnect the coolant hose (B).
- Remove the ETC module from the engine after loosening the installation bolt (C).
