Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

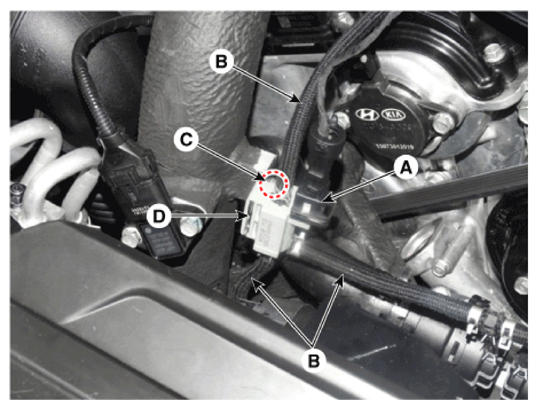

  2. Disconnect the RCV control solenoid valve connector (A) and vapor hose (B).
  3. Remove the RCV control solenoid valve (D), after loosen the bolts (C).
G14233199Courtesy of HYUNDAI MOTOR AMERICA
