Driver's Side
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the main crash pad assembly.
(Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

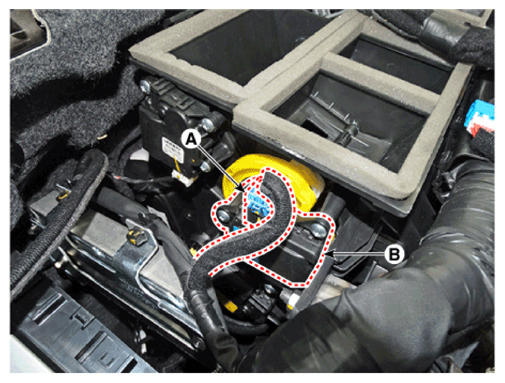

- Disconnect the connector (A) and then remove the mode control actuator (B) after loosening the mounting screws.
- To install, reverse the removal procedure.
