Repair Procedures: Removal

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

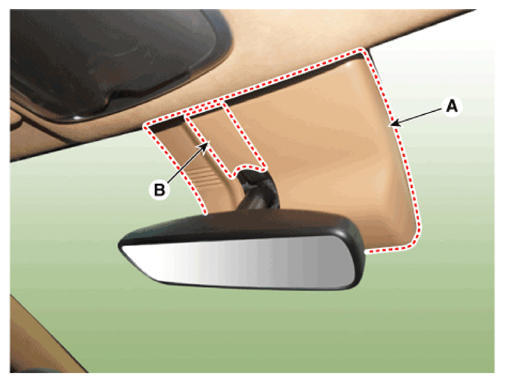

  2. Remove the inside rear view mirror cover (A) and rain sensor cover (B).
    G14234077Courtesy of HYUNDAI MOTOR AMERICA

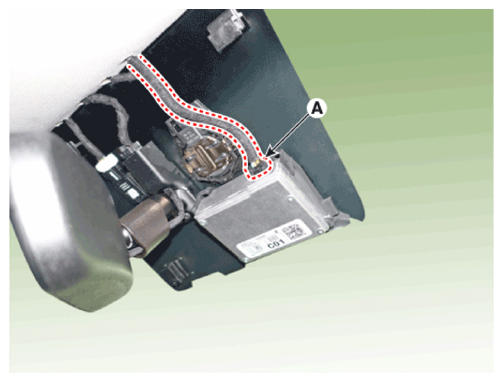

  3. Disconnect the front view camera unit connector (A).
    G14234078Courtesy of HYUNDAI MOTOR AMERICA

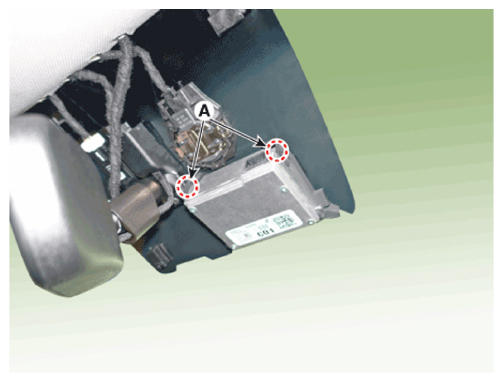

  4. Separate the fixed points (A) of coupler, remove the front view camera (B).
G14234079Courtesy of HYUNDAI MOTOR AMERICA

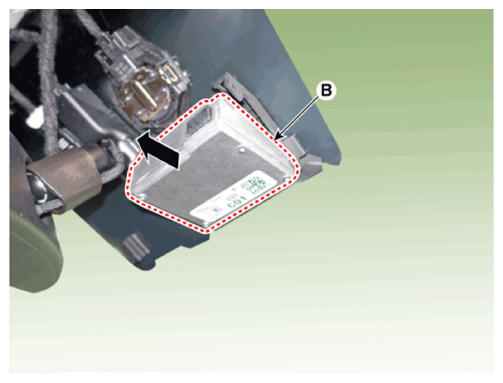

G14234080Courtesy of HYUNDAI MOTOR AMERICA
