Repair Procedures: Removal

1. Remove the front bumper cover.

   (Refer to Body - "FRONT BUMPER COVER ")

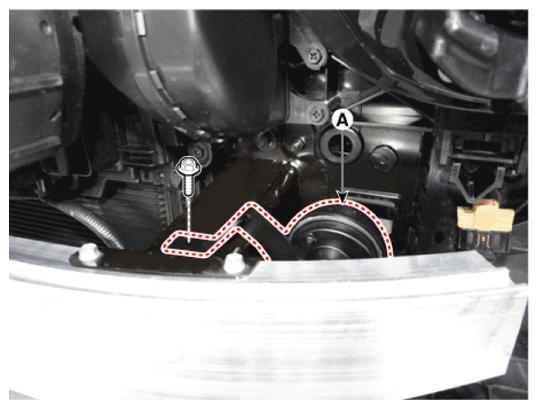

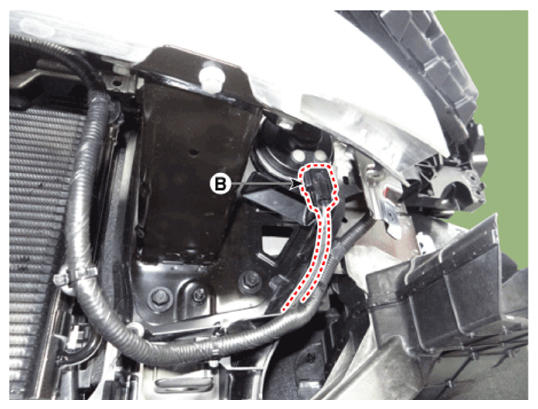

2. Remove the high-pitch horn (A) after disconnecting the connector (B) and loosening the mounting bolts.

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

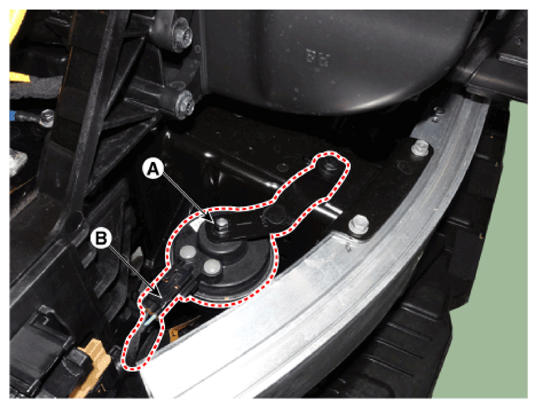

3. Remove the low-pitch horn (B) after disconnecting the connector (A) and loosening the mounting bolts.

Courtesy of HYUNDAI MOTOR AMERICA
