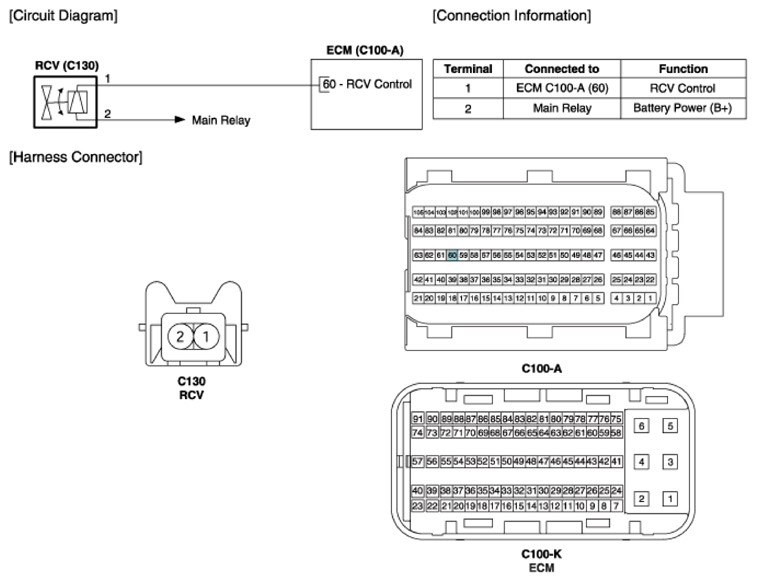

Home › Genesis › 2021 › G90 3.3T Premium, RWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.3L › RCV Control Solenoid Valve › Schematic Diagrams › Circuit Diagram
