Repair Procedures: Installation
CAUTION:

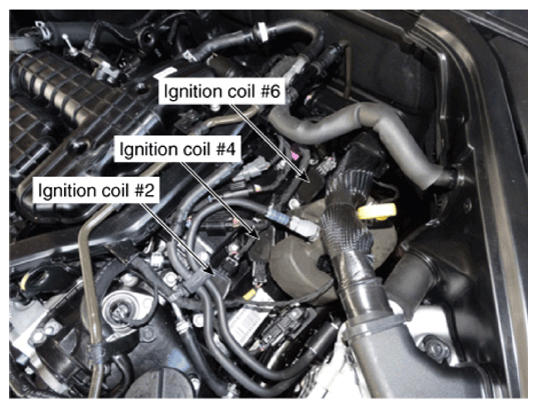

- Do not confuse the ignition coil #2 with #4 connections.
- Doing so may cause the engine to stall due to incomplete ignition. And, since unburned fuel flows into the catalyst, this can overheat and damage the catalyst.
- A yellow tag (A) is attached to ignition coil #4. Use this tag for reference when connecting the ignition coils
- Install in the reverse order of removal.
Ignition coil installation bolts:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib-ft)
