Home › Genesis › 2021 › G90 5.0 Ultimate, AWD › Repair and Diagnosis › Accessories & Equipment › Collision/Avoidance › Driver Driving Assistance System › Front Corner Radar › Components And Components Location

Components And Components Location

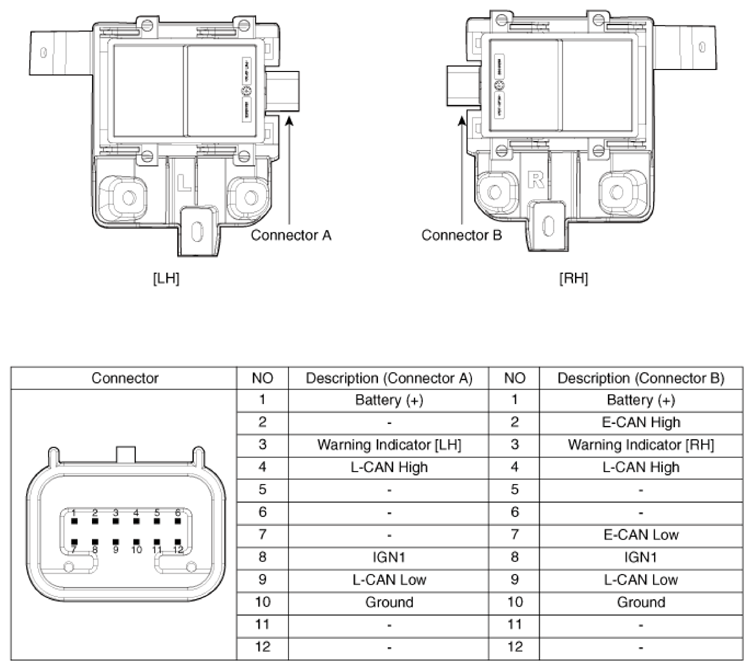

Fig 1: Front Corner Radar Connector End View And Terminal Description
G14234251Courtesy of HYUNDAI MOTOR AMERICA
G14234252Courtesy of HYUNDAI MOTOR AMERICA
