Repair Procedures: Removal
- Remove the front bumper.
(Refer to Body - "FRONT BUMPER ")

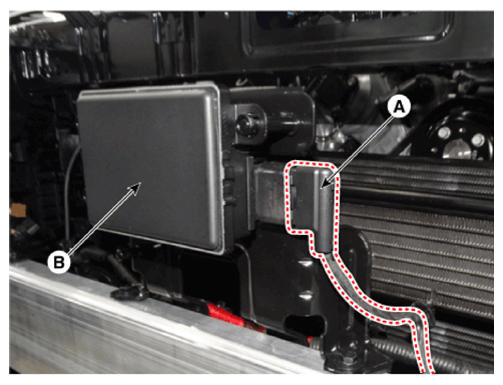

- Disconnect the smart cruise control unit connector (A).

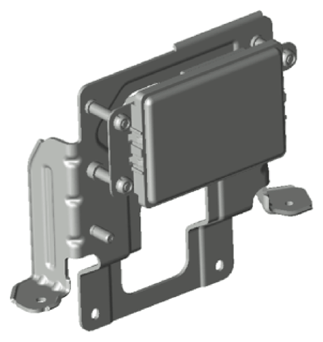

- Remove the smart cruise control unit assembly (B) from the vehicle after loosening mounting bolts.
(Refer to Body - "FRONT BUMPER ")
