Repair Procedures: Inspection

  1. Remove the trunk inner switch.
  2. Check for continuity between terminals of the trunk inner switch.

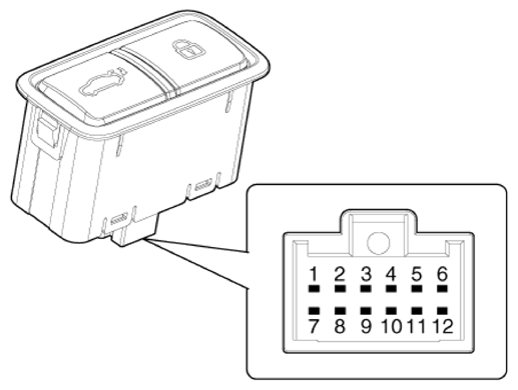

G14236254Courtesy of HYUNDAI MOTOR AMERICA

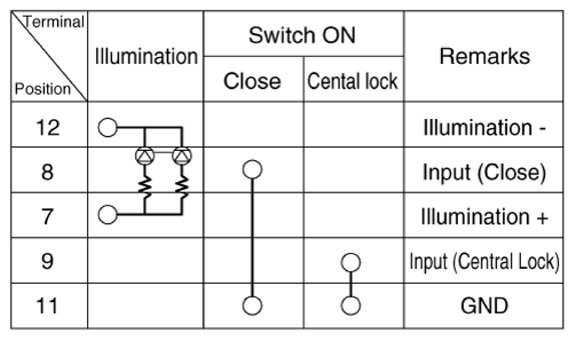

G14236255Courtesy of HYUNDAI MOTOR AMERICA
