Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the left trunk trim after opening the trunk.

    (Refer to Body - "TRUNK TRIM ")

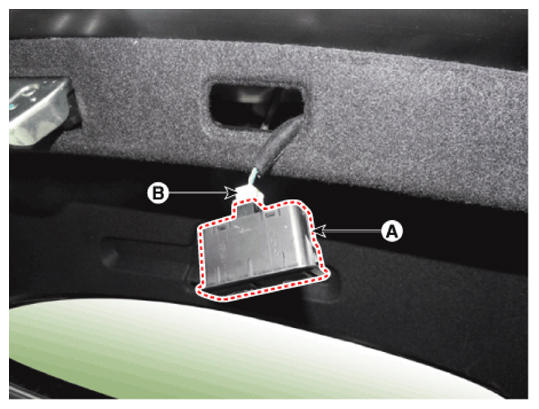

  3. Remove the trunk inner switch (A) after disconnecting the connector (B).
G14236256Courtesy of HYUNDAI MOTOR AMERICA
