Neutralization Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization mode".

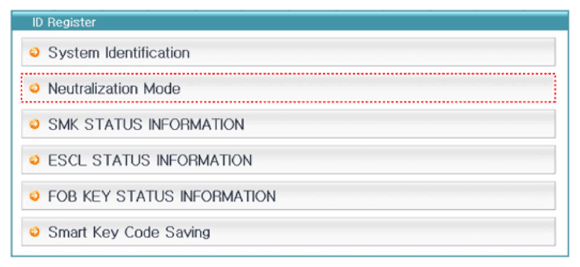

G14235899Courtesy of HYUNDAI MOTOR AMERICA

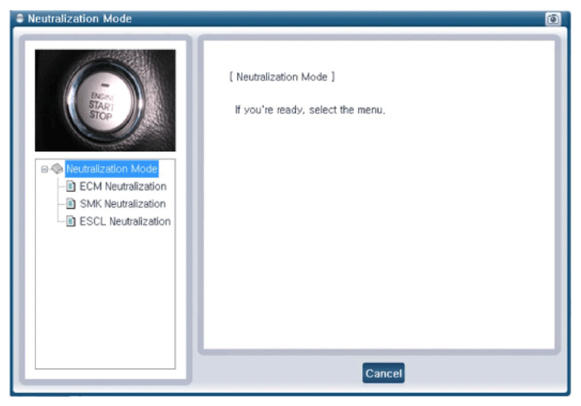

G14235900Courtesy of HYUNDAI MOTOR AMERICA

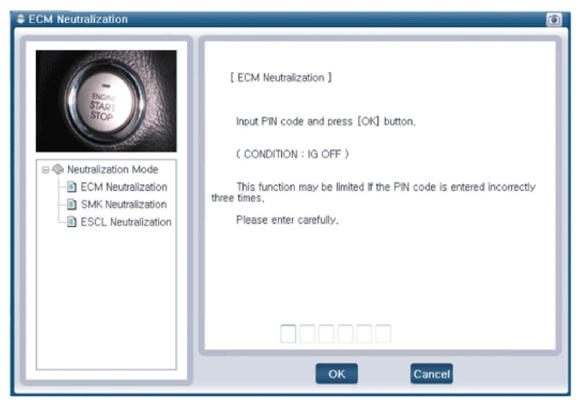

G14235901Courtesy of HYUNDAI MOTOR AMERICA
