Integrated Body Control Unit
- Disconnect the negative (-) battery terminal.
- Remove the lower crash pad panel [RH].
(Refer to Body - "LOWER CRASH PAD PANEL [RH] ")

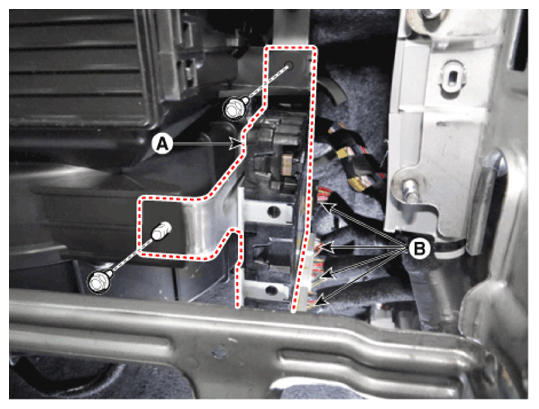

- Remove the IBU (A) after disconnecting the connectors (B) and loosening the bolts.
(Refer to Body - "LOWER CRASH PAD PANEL [RH] ")
