Rear Power Seat Module
- Disconnect the negative (-) battery terminal.
- Remove the rear seat assembly.
(Refer to Body - "REAR SEAT ASSEMBLY ")
- Remove the rear seat frame assembly.
(Refer to Body - "REAR SEAT ")

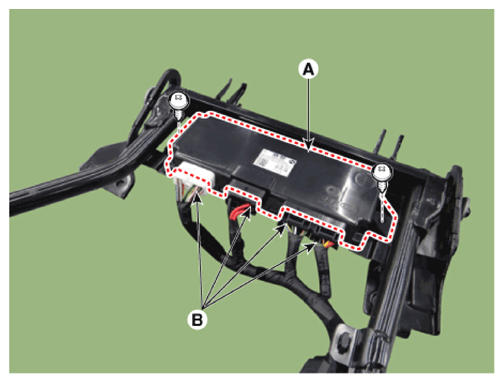

- Remove the rear power seat module (A) after loosening the mounting screws and disconnecting the connectors (B).
