Home › Genesis › 2021 › G90 5.0 Ultimate, AWD › Repair and Diagnosis › Engine Mechanical › Lubrication System - 5.0L › Oil Pump › Components and Components Location › Components › 2WD

Components and Components Location: Components: 2WD

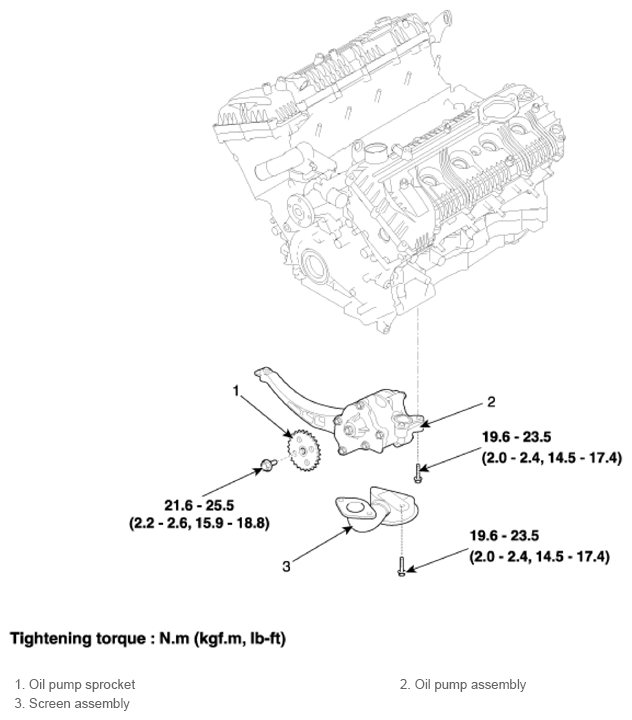

Fig 1: Oil Pump Components Location With Torque Specification (AWD)
G14236784Courtesy of HYUNDAI MOTOR AMERICA
