Home › Genesis › 2021 › G90 5.0 Ultimate, AWD › Repair and Diagnosis › Engine Mechanical › Lubrication System - 5.0L › Oil Pump › Components and Components Location › Components › Notes

Components and Components Location: Components: Notes

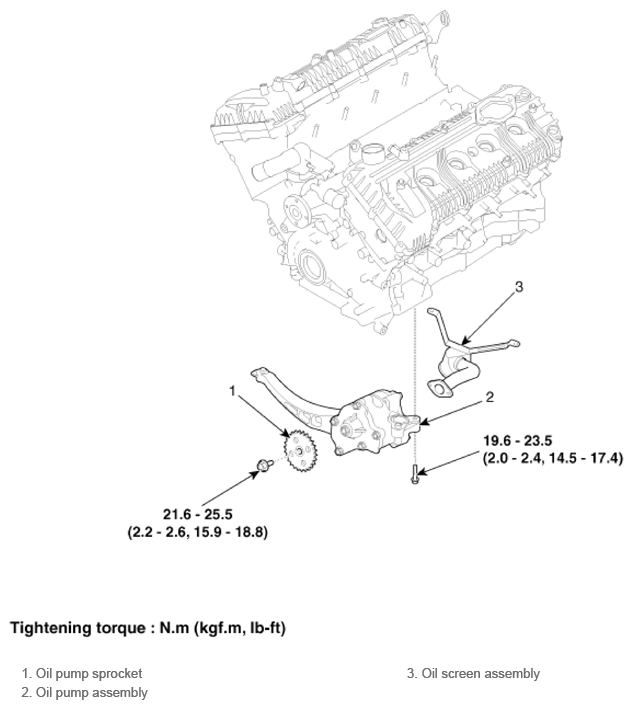

Fig 1: Oil Pump Components Location With Torque Specification (2WD)
G14236783Courtesy of HYUNDAI MOTOR AMERICA
