CVVT Oil Control Valve (Bank 1/Exhaust)

1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.

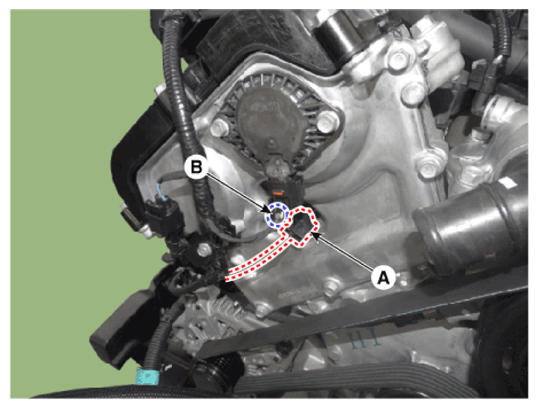

2. Disconnect the OCV connector.
3. Remove the mounting bolt (B), and then remove the OCV from the engine.

Courtesy of HYUNDAI MOTOR AMERICA
