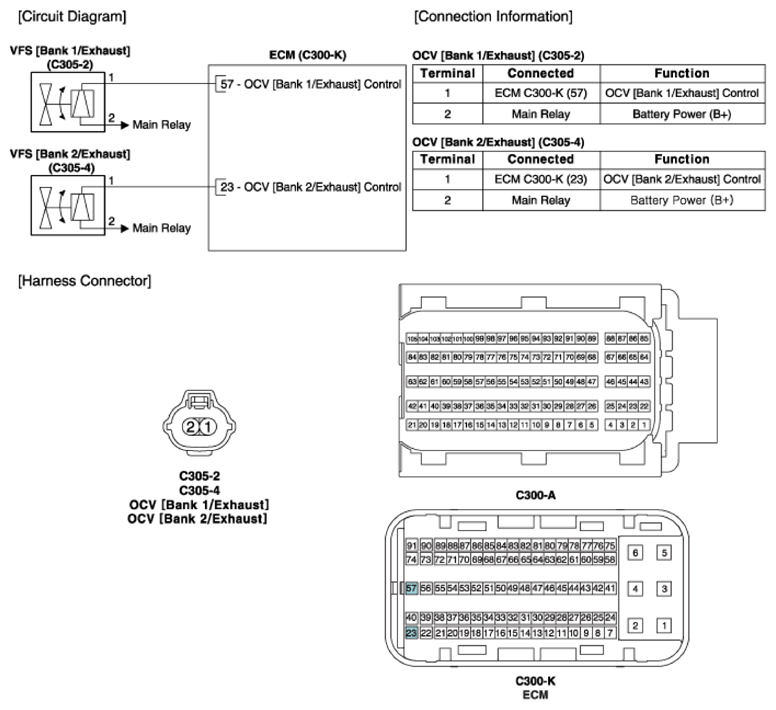

Home › Genesis › 2021 › G90 5.0 Ultimate, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 5.0L › CVVT Oil Control Valve (OCV) › Schematic Diagrams › Circuit Diagram
