Bank 1

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Disconnect the camshaft position sensor connector (A).
3. Remove the installation bolt (B), and then remove the sensor.

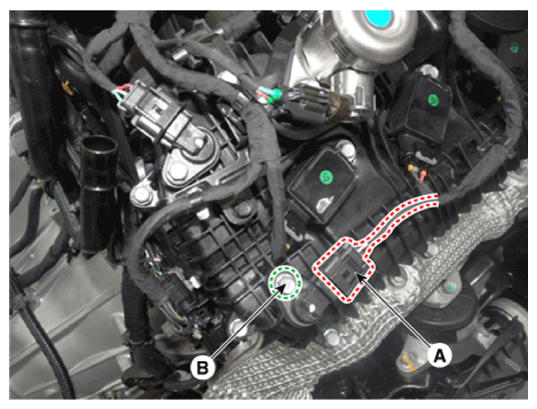

[Bank 1/Intake]

Courtesy of HYUNDAI MOTOR AMERICA

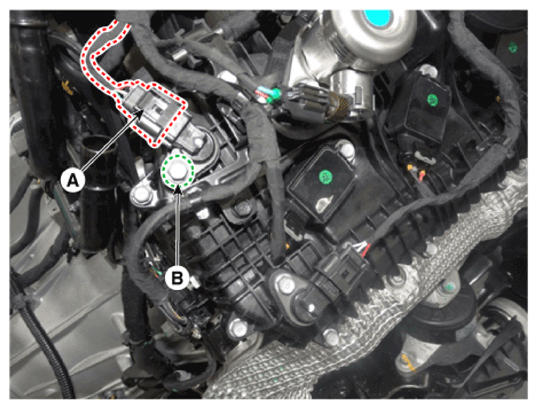

[Bank 1/Exhaust]

Courtesy of HYUNDAI MOTOR AMERICA
