Bank 1/Sensor 2
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Lift the vehicle.
- Remove the rear under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

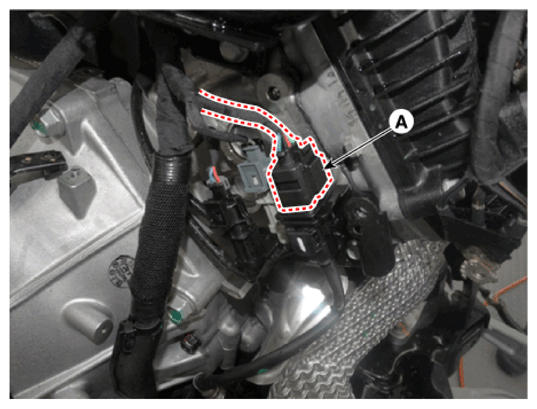

- Disconnect the heated oxygen sensor connector (A).

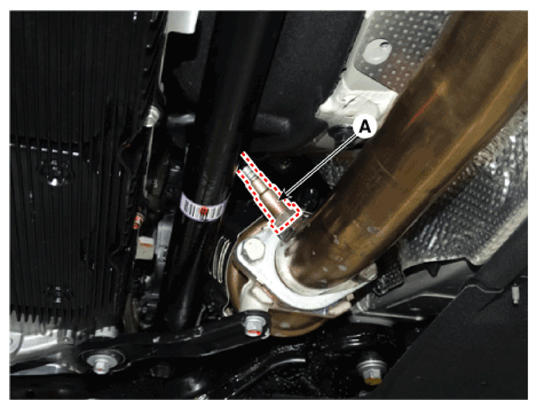

- Remove the heated oxygen sensor (A).
