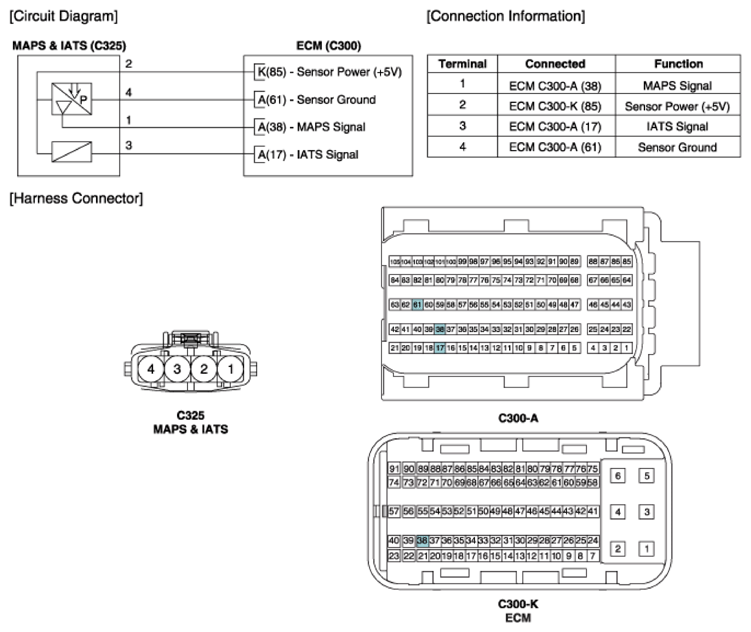

Home › Genesis › 2021 › G90 5.0 Ultimate, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 5.0L › Manifold Absolute Pressure Sensor (MAPS) › Schematic Diagrams › Circuit Diagram
