Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the accelerator position sensor connector (A).
  3. Remove the mounting nut (C) after removing the top cap (B).
  4. Remove the mounting bolt (E) after removing the Lower cap (D).

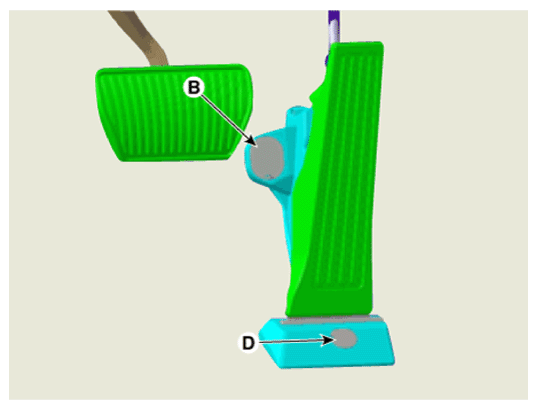

G14237224Courtesy of HYUNDAI MOTOR AMERICA

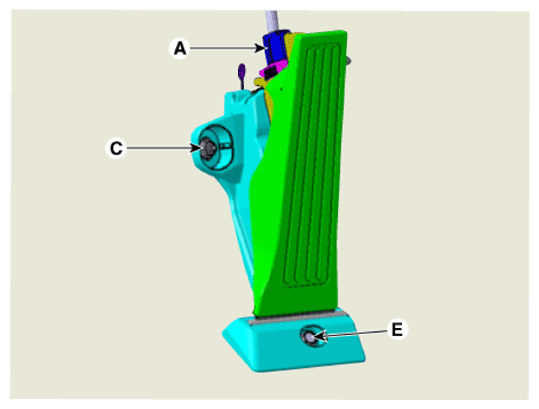

G14237225Courtesy of HYUNDAI MOTOR AMERICA
