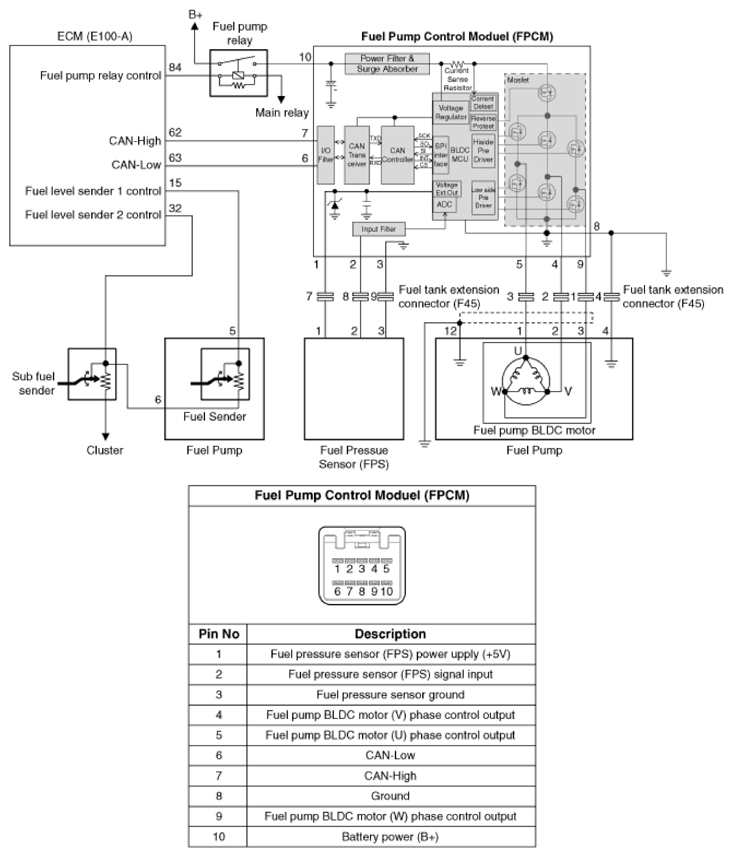

Home › Genesis › 2021 › G90 5.0 Ultimate, AWD › Repair and Diagnosis › Engine Performance › Fuel Delivery › Fuel Delivery System - 5.0L › Fuel Pump Control Module FPCM › Schematic Diagrams › Circuit Diagram
