Connector Assembly Status Test

  1. Remove the connector (A) and reinstall it.

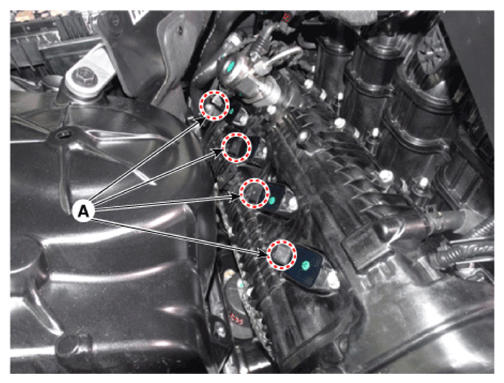

G14236887Courtesy of HYUNDAI MOTOR AMERICA

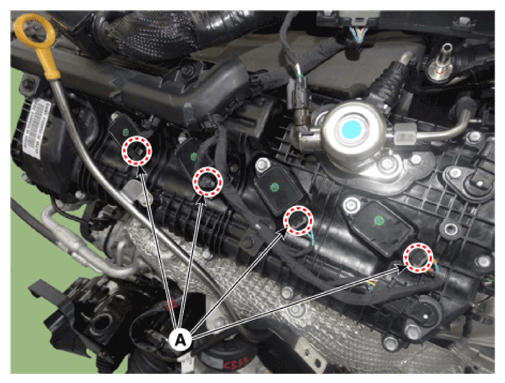

G14236888Courtesy of HYUNDAI MOTOR AMERICA

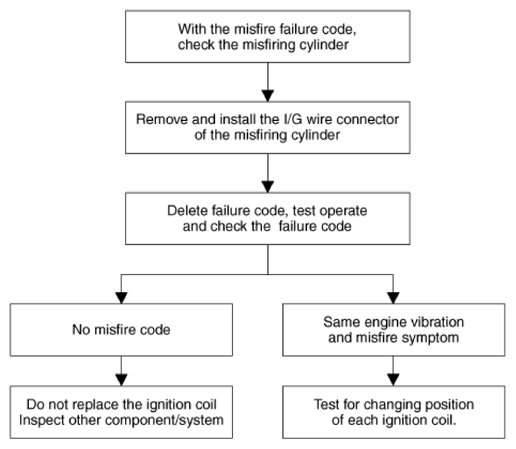

G14236889Courtesy of HYUNDAI MOTOR AMERICA
