Repair Procedures: Removal
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- If it is necessary to remove multifunction switch assembly, remove the steering wheel.
(Refer to Steering - "STEERING WHEEL ")
- Remove the steering column upper shrouds.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")
- Remove the clock spring.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

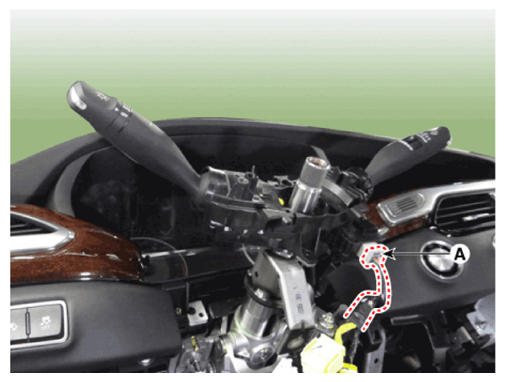

- Disconnect the multifunction switch connector (A).

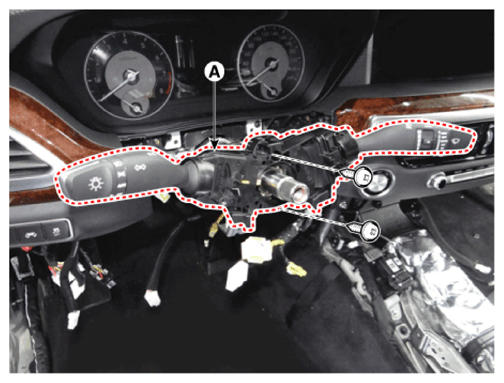

- Remove the multifunction switch (A) after loosening the screws.
