Repair Procedures: Removal
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.

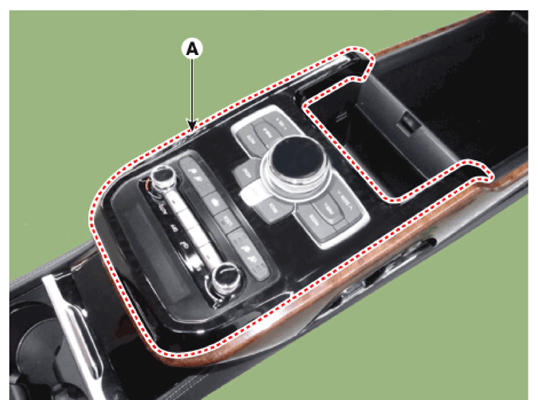

- Disengage the rear seat armrest upper cover (A).
- Remove the rear seat armrest upper cover after disconnecting the switch connectors (A).

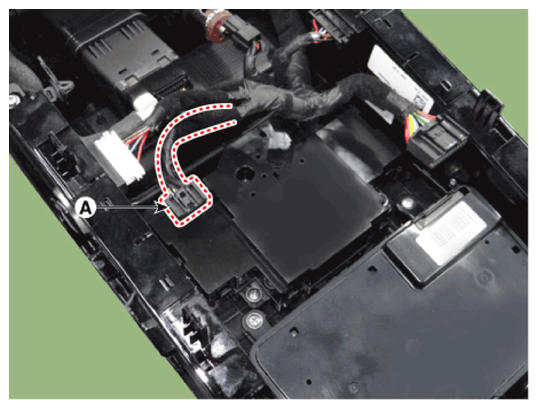

- Disconnect the rear integrated controller connector (A) from the armrest upper cover.

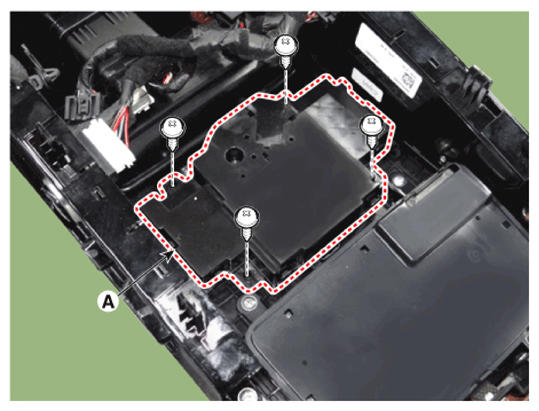

- Remove the rear integrated controller (A) after loosening the mounting screws.
