Repair Procedures: Inspection
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

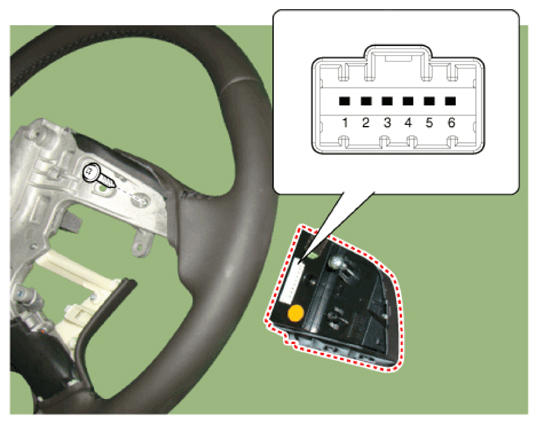

- Check for resistance between terminals in each switch position (LH).CONNECTOR TERMINAL RESISTANCE SPECIFICATIONS (AUDIO / BLUETOOTH / VOICE)
Switch Connector Terminal Resistance (±1%) SEND 2-6 430 Ω END 1.11 kΩ SEEK UP 2.11 kΩ SEEK DOWN 4.51 kΩ Mode 3-6 2.2 kΩ MUTE 2.88 kΩ Voice 3.88 kΩ - Check for resistance between terminals in each switch position (RH).

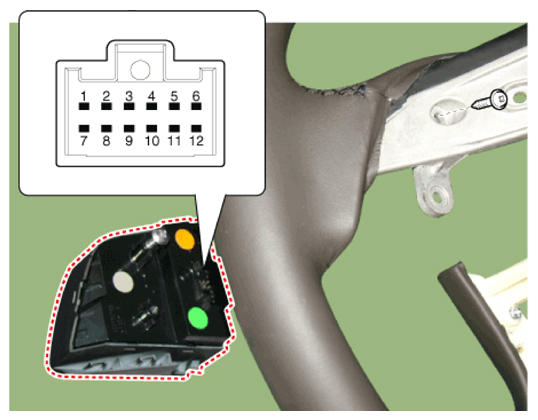

CONNECTOR TERMINAL RESISTANCE SPECIFICATIONS (TRIP / CRUISE)
| Switch | Connector Terminal | Resistance (±1%) |
|---|---|---|
| CANCEL | 2-3 | 550 Ω |
| SET - | 880 Ω | |
| RES + | 1.44 kΩ | |
| Cruise | 2.54 kΩ | |
| Smart Cruise | 5.54 kΩ |
