Front Brake Pad Check
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

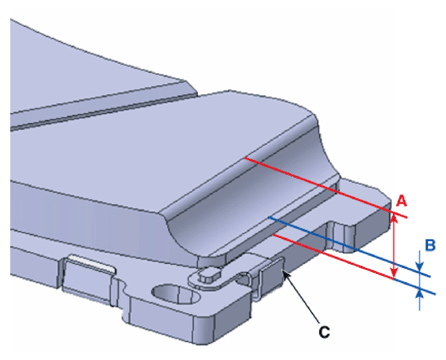

- Measure the brake pad wear as shown in the following table. Replace the brake pad, if this thickness is less than the service limit thickness (B).
Standard value:
17.0 mm (0.67 in)
Service limit:
8.0 mm (0.31 in)
Information

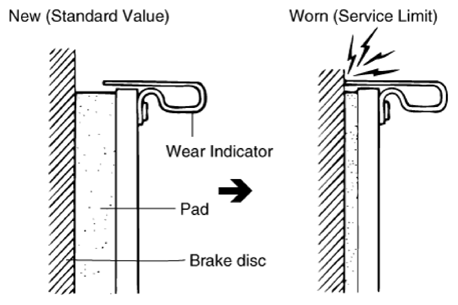

- The brake pad wear indicator (C) and brake disc make a friction noise when brake pads are worn out below the service limit of 2.0 mm (B).
