Repair Procedures: Installation

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.

NOTE:

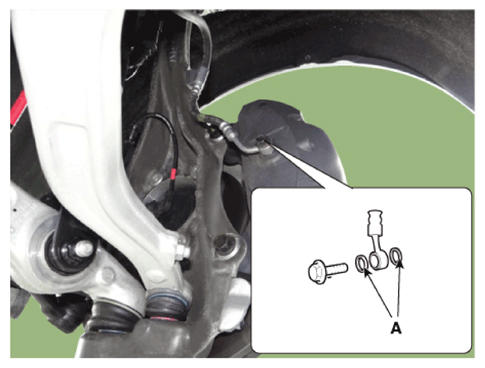

Use a new washer (A) whenever installing.

Courtesy of HYUNDAI MOTOR AMERICA

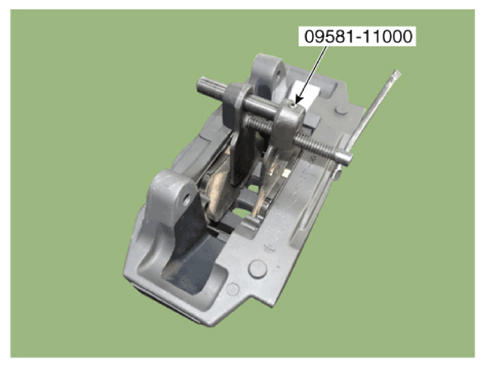

Use a SST (09581-11000) when installing the brake caliper assembly.

Courtesy of HYUNDAI MOTOR AMERICA

After installation, bleed the brake system.
(Refer to ESP SYSTEM BLEEDING )
