Repair Procedures: Installation
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedures.

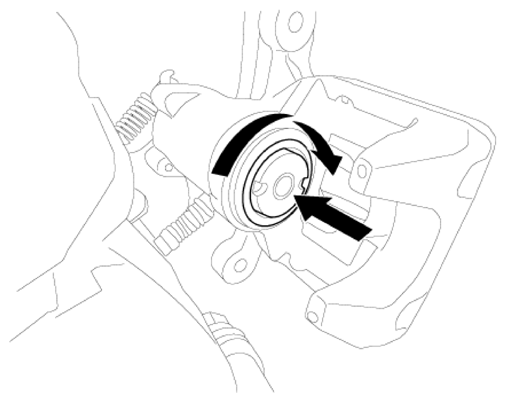

- When installing, press and rotate the piston into the caliper body until it is fully retracted.NOTE:
- For the brake pad to locate on the normal operation position, depress the brake pedal halfway several times until the brake pedal gains resistance.
- After disassembling/assembling the caliper body or replacing the brake caliper, parking brake cable or brake disc, re-adjust the parking brake.
- After installation, bleed the brake system.
(Refer to Brake System - "ESP SYSTEM BLEEDING ")
