Repair Procedures: Removal
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Removal of the airbag must be performed according to the precautions/procedures described previously.
- Before disconnecting the front impact sensor connector, disconnect the front airbag connector(s).
- Do not turn the ignition switch ON and do not connect the battery cable while replacing the front impact sensor.
- Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
- Remove the engine cover.
(Refer to Engine And Transaxle Assembly - "ENGINE COVER ")

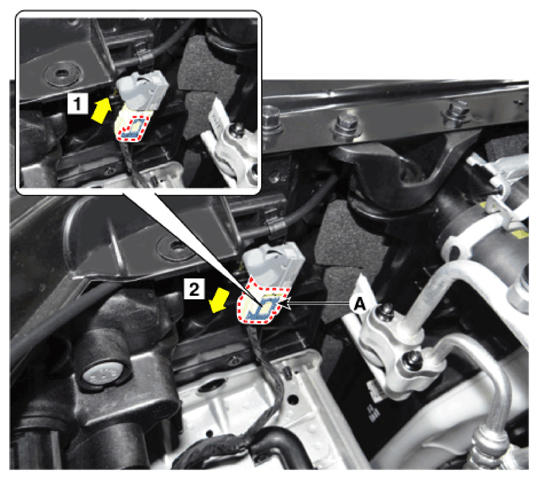

- Disconnect the front impact sensor connector (A).

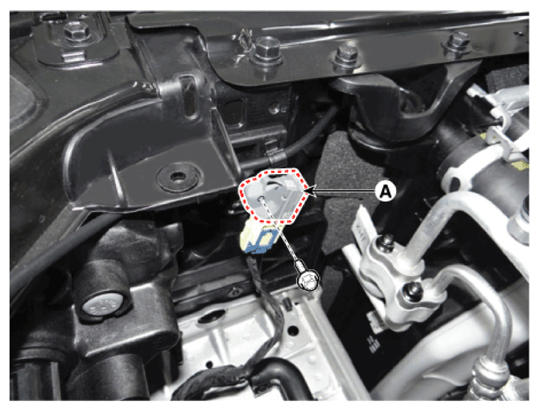

- Remove the front impact sensor (A) after loosening the mounting bolt.
