Occupant Classification System (OCS) Unit
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
- Remove the front passenger seat assembly.
(Refer to Body - "FRONT SEAT ASSEMBLY ")

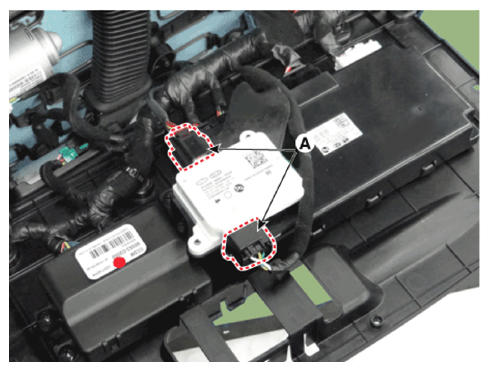

- Disconnect the occupant classification system unit connector (A).

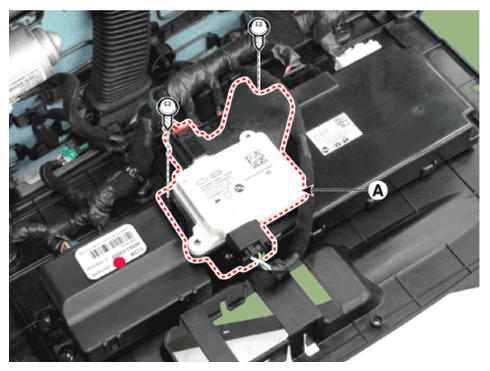

- Remove the occupant classification system unit bracket (A) after loosening the mounting screws.

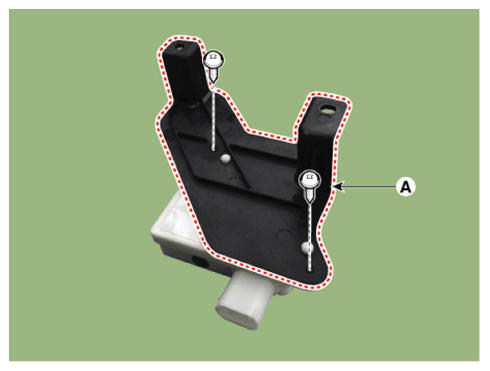

- Remove the occupant classification system unit (A) from the bracket after loosening the mounting screws
