Repair Procedures: Replacement
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the lower crash pad panel [RH].
(Refer to Body (Interior and Exterior) - "LOWER CRASH PAD PANEL [RH] ")

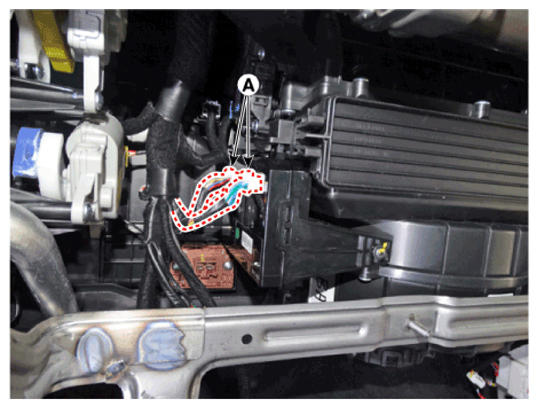

- Disconnect the heater control unit connectors (A).

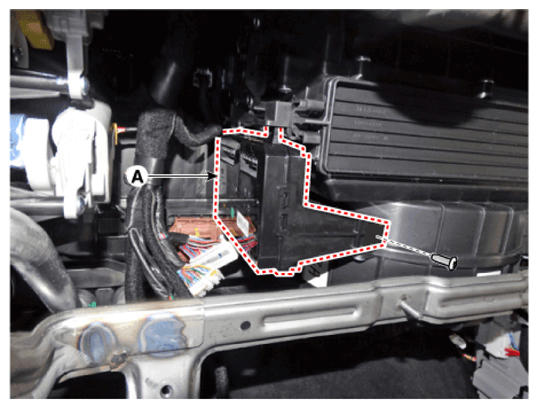

- Remove the heater control unit assembly (A) after loosening the mounting screw.
- To install, reverse the removal procedure.
