Repair Procedures: Replacement

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the rear console assembly.
(Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ")

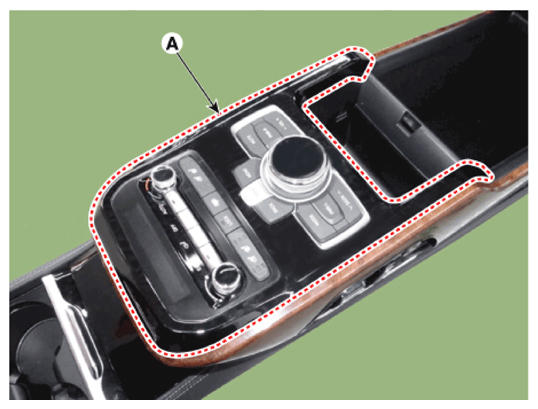

Using a screwdriver or remover, remove the rear console upper cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

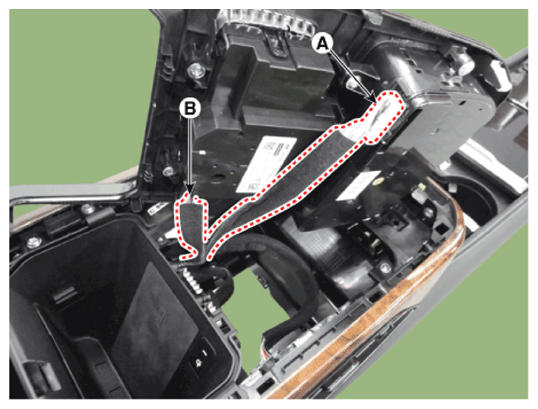

Disconnect the rear console control unit connector (A) and AVN keyboard connector (B).

Courtesy of HYUNDAI MOTOR AMERICA

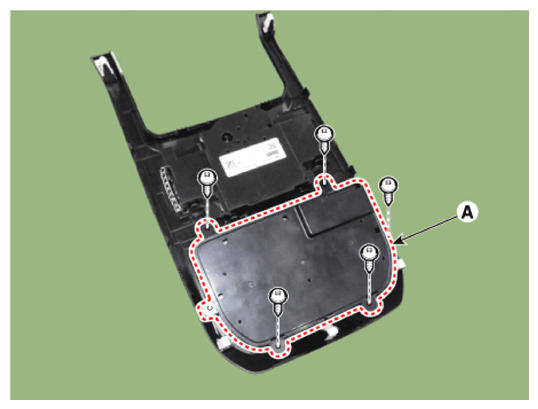

Remove the rear console control unit (A) after loosening the mounting screw.

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.

Information

Make sure the connector is connected properly.
Replace any damaged clips (or pin-type retainers).
