Integrated Body Control Unit (IBU)

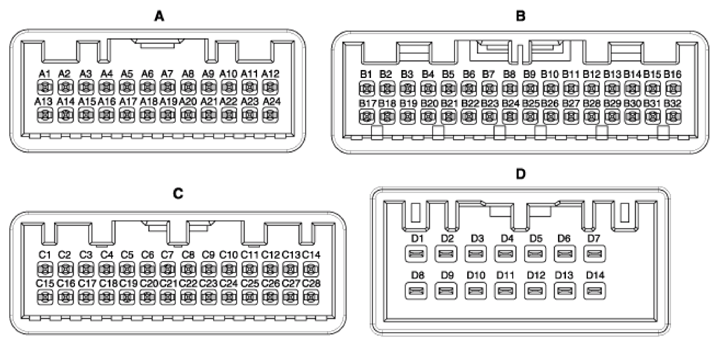

G14210106

Courtesy of HYUNDAI MOTOR AMERICA

Pin	Function
D4, D5	IGN 2_Heated Handle Power
D3	Heated Handle Out
B2	NTC (+)
B1	NTC (-)
